MG-M4 MOBILE REFRIGERATION UNIT


MG M4 MOBILE FREEZER BOX


Murickens group An ISO 9001:2015 certified company introduces two registered brand name MG and Flyline with low maintenance, competitive price and with the aim of power saving. In 1990 Murickens Group commenced the production in the field of Electronics, they were keen to develop a MG Dead body Mobile Mortuary which could be of help to the bereaved to preserve the departed for such time, that, the relatives arrive to pay their respect. Now Murickens Group currently has seven types of dead body preserving mobile mortuaries. The main difference between them is the exterior body materials used in the design, the top opening cover material and its design. Being the first manufacturer and supplier of mobile mortuary in this field ,with an experience of more than 30-years.We have thousands of satisfied customers in India and different parts of the world.

Our valued and reputed clients list includes The CISF 7th Battalion Military Camp Chennai, Command hospital Chandimandir, St.Ursula hospital, Pune, Shanti memorial hospital Cuttack, Dept. of Space Sriharikota, Birla research institute, Malayalee assosation Bhopal..etc. (outside Kerala). Govt. hospitals - Aluva, Kottayam, Varkala, Mulanthuruthy...etc. Co-operate Banks - Marayoor service co-operative bank Idukki, Karukutty service co-operative bank... etc. (Kerala) Al-Amin medical service Bangladesh, Saudi etc...(exporting).

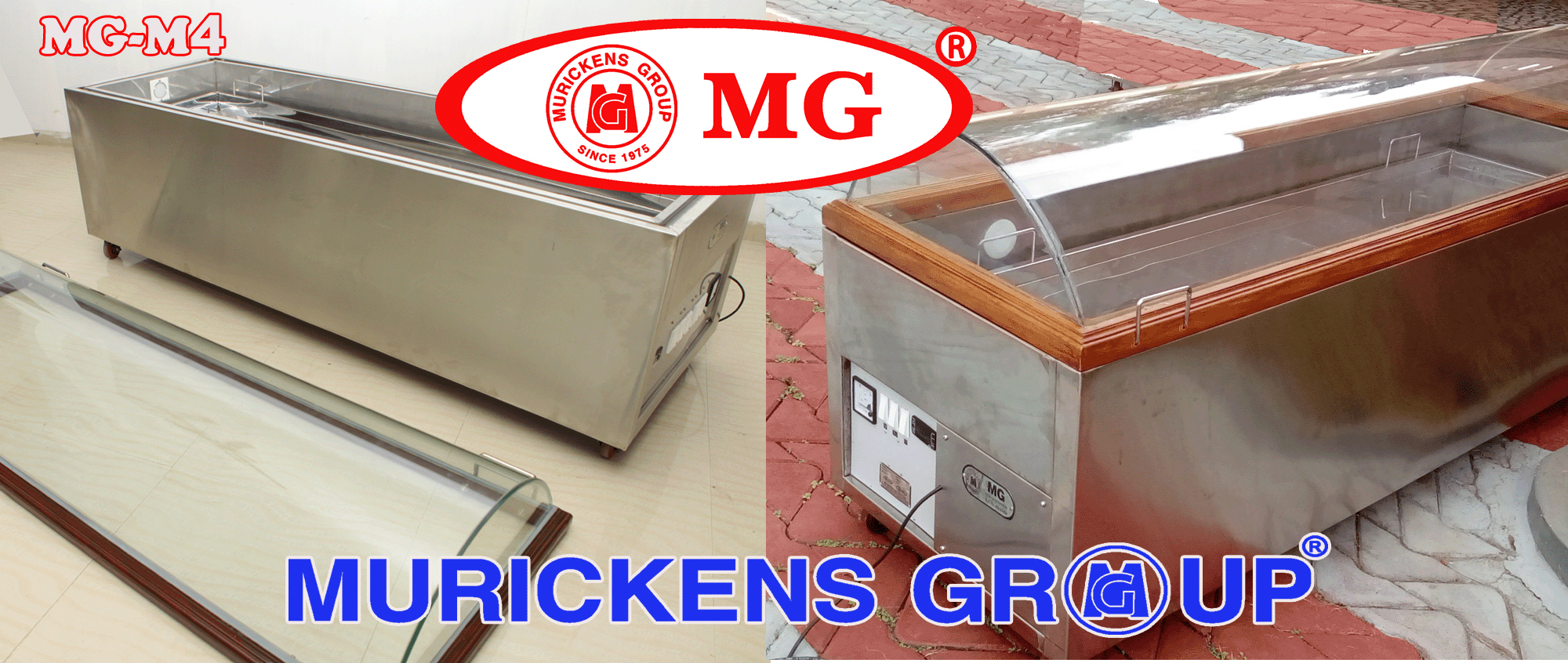

The MG-M4 stands out among the 7 models of mobile mortuaries built using the latest technology of the Murickens Group. This system has only one part i.e. the body part. The compressor and electrical supply system are located at the bottom of this body part, which is a feature of this model.In this model the Pure Glass Top 8 mm Fitted on wooden frame.

The top cover glass is made up of pure glass which is inserted on a beautifully designed wooden frame. It uses Fisher emersion make compressor that operate at very low power.So that this system give the customer confidence. Many people are forced to put up a stand-by mortuary at all times because of fear that models using cheap low-end compressors will stop at any moment. So, far-sighted consumers choose models that use a quality compressor which is a little bit expensive. The glass top used in this model shows the luxurious beauty of this mortuary. All gas lines on the refrigeration side are made of copper, so the nightmare of gas leakage is eliminated. The lighting system used in this model illustrates the insight. Made of high-quality stainless steel, the body structure ensures long life. The dimension inside this model is designed so as to accommodate all most all types of body measures.


MG Mobile Mortuary all model videos: -Click Here

MG Mobile Mortuary Export model videos: -Click Here

MG - M4 Model images: -Click Here

MG-M4 Model DEAD BODY MORTUARY FRREZER: Dimension

Dimension

► Length-203.2 cm (80 inches). ► Height:88.9 cm (35 inches). ► Width-71.12 cm(28 inches). ► Mortuary Inside length -74.5 inches(189 cm). ► Mortuary Inside Width -22 inches(57 cm).

Weight

► Weight of bottom section: 65 Kg. ► Weight of top opening pure glass with wooden frame :45 Kg. ► Weight of body lifting steel structure: 7Kg.

Total weight of MG dead body PRESERVING UNIT : 117 Kg


MG-M4 MOBILE MORTUARY FEATURES:

► US Technology with low maintenance. ► Dead body can be preserved for longer periods. ► Stainless Steel stretcher. ► Mortuary body made-up of full Stainless steel and copper which provide complaint free working and long life. ► View from all angles. ► Fully automatic. ► Adjustable Digital display thermo meter. ► Input voltmeter. ► Separate on-off switch for voltmeter ,lights and compressor. ► Insulation - PUF system(New technology). ► Inner side light. ► Top door opening with side view Pure Glass. ► Attractive top door handle 4 No. ► Light weight and compact size. ► Noiseless functioning. ► Wheel mounted (smooth and strong four wheels). ► Attractive look and long durability. ► Temperature from -2oC to -20oC.

TECHNICAL FEATURES OF MG-M4 MOBILE MORTUARY:

                MG M4 MOBILE MORTUARY
Model Name. Description
MG EL- M4 Extra Large (EL ) Pure Glass Top
Input volt AC power 220-230V
Top Opening Door Pure Glass Top 8 mm. Fitted on wooden frame.
Dimension  Legth x Height x Width
MGEL- M4 ( Glass EL) 80 " x  35  "  x 28 ":   ( 203.2 cm x 88.9 cm x 71.12 cm)
Mortuary Inside length 74.5 inches (189 cm)
Mortuary Inside Width 22 inches ( 57 cm)
Weight of mortuary Below 120 Kg including stretcher
Compressor Fisher / Emersion : 250 watts , model 415.
Total system power 350 w including fan, lights and compressor
Temperature Digital display, adjustable temperature.
Structure of the body Stainless-steel and copper ,Outer Nonmagnetic Steel 202,
Gauge 22, Inner Steel 304 Gauge 26, Structure 202 Gauge 26
Applicable generator 2000VA, 2800 VA or 3000 VA.
Applicable stabilizer 1.5 kva wide range special
Above dimensions will change , according to the model.
